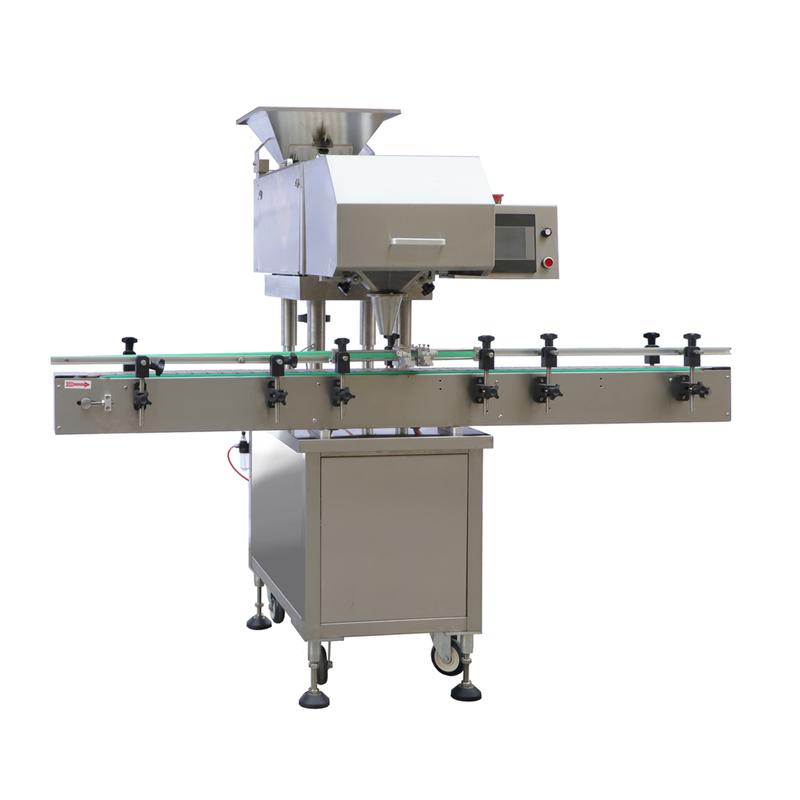

Softgel Candy Counter Counting Tablets Capsule Machine
  • Softgel Candy Counter Counting Tablets Capsule Machine
  • Softgel Candy Counter Counting Tablets Capsule Machine
  • Softgel Candy Counter Counting Tablets Capsule Machine
Softgel Candy Counter Counting Tablets Capsule Machine

Softgel Candy Counter Counting Tablets Capsule Machine

Herkunftsort China
Markenname LTPM China
Zertifizierung CE, GMP, SGS, BV
Modellnummer LTEC-Serie
Produkt-Details
Verwendung:
Kapsel, Tabletten, Zahnfleisch, Gummi usw.
Leistung:
einphasiges 220V 50HZ
Übertragung:
Elektronisch
Kapazität:
2000-3000 Stück/Minute
Marke:
LeadTop
Leitungslänge:
Optional
Gewicht:
100kg
Dimension:
1200 mm × 660 mm × 750 mm
Hervorheben:

softgel candy counting machine

,

automatic capsule counter

,

tablet counting machine with warranty

Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge
1 Satz
Preis
negotiable
Verpackung Informationen
Exportieren Sie eine Standard-Holzkiste
Lieferzeit
25 Tage
Zahlungsbedingungen
T/t, l/c, d/p
Versorgungsmaterial-Fähigkeit
15SETS/Monat
Produkt-Beschreibung

Products Description

counting and filling machine is a minitype lab equipment which adopts advanced vibration and 8 channel, computer control, dynamic scan counting automatically. The machine with compact design is comply with the standard of GMP. The machine is easy to be operated without training. Compose the light, electric machinery to one set, which is suitable for tablet or capsule counting and filling in lab, semi-works.
This capsules counting mchine combines 16-channel counting heads over a dual-track conveyor on a single frame to double the throughput without doubling the floor space, achieving speeds up to 60 cpm based on 100-count bottles. The machine handles a wide variety of candies,both hard and soft candies of different shapes, sizes and properties.

Features
1. Speeds up to 30 cpm based on 100-count bottles with vibration system

2. Counter discrepancies is less than 1‰

3. Operation stable and lower noise

4. Bottle convey smoothly with dual-track conveyor

5. full-set protecting device keep operation steady and reliable

6. Touch screen Control System which is easy to control

7. Simple Straight Forward Operator Controls

8. On-Screen trouble description which is easy to solve

9. Stainless Frame capsules counting mchine


Main Technical Data

Counting Speed 2000-3000 pieces/minute
Bottle height 40mm-100mm
Bottle opening Φ25- 40 mm
Bottle diameter Φ45 mm – 60 mm
Size of tablet Φ5 mm – 15 mm
Size of capsule 0# – 5#
Power source & consumption 1.5KW, 220v, single phase, 50-60HZ
Compressed air pressure 87 Psi (6 Kgs/ cm2)
Dimensions (L*W*H) 1200mm×660mm×750 mm
Weight 100kg
Working direction Left → Right (or Right → Left)



Umbauten:

Pille,

die Maschine zählt,

Automatisches Tablet
