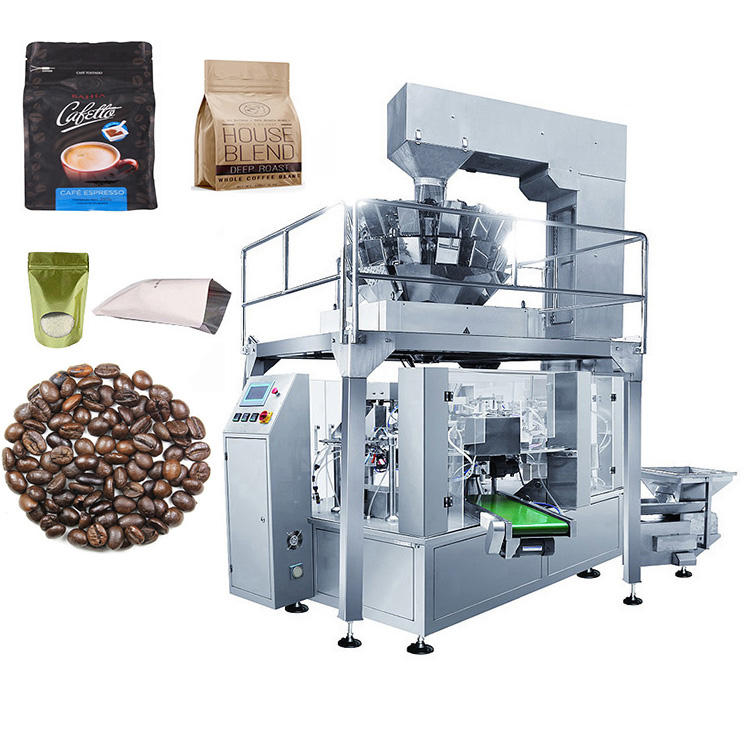

Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans
  • Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans
  • Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans
  • Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans
Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans

Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans

Herkunftsort CHINA
Markenname LTPM CHINA
Zertifizierung CE
Modellnummer Horizontop-Serie
Produkt-Details
Typ::
Verpackungsmaschine
Anwendung:
Essen, tägliche Chemikalie usw.
Automatischer Grad::
Automatisch
Dimension (l*w*h)::
1710*1505*1640 mm
Zusätzliche Funktion:
Hangesloch, besondere Form
Verpackende Geschwindigkeit::
30-60bags/min
Kontrolle:
SPS+ Touchscreen+ Wechselrichter
Gewicht (kg):
1600
Hervorheben:

premade bag packing machine for coffee

,

automatic weigh fill seal packing machine

,

zip bag packing machine with warranty

Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge
1 Set
Preis
negotiable
Verpackung Informationen
Holzkoffer
Lieferzeit
25
Zahlungsbedingungen
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit
25 Sätze/Monat
Produkt-Beschreibung

Products Description

Main Features
1. Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
2. Easy to adjust: All working process in one station, more easily adjusting.
3. Frequency control: Speed can be adjusted by frequency conversion within the range.
4. High Automation: Unmanned in weighing and packing process, machine will show alarm automatically
when failure.
5. Pouch size change: 8 sets of gripper can be adjusted hand wheel at one time .
6. No pouch/ incorrect pouch opening-no fill-no seal, machine alarm.
7. Machine will show alarm and stop when inadequate air pressure.
8. Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
9. Hygienic construction, the product contact parts are adopted sus304 stainless steel.
10. Imported engineering plastic bearings, no need oil, no contamination.
11. Oil-free vacuum pump, avoid the pollution of the production environmental.

Work Process:
bag giving→date coding →bag opening →filling and vibrating 1→filling and vibrating2→heat sealing 1→heat sealing 2→forming and output





Data

Model HorizonTop-Series
Bag Size
Width:100-210mm,
Length:100-350mm
Filling Volume 5-2500g (Depending on type of products)
Capacity 30-60bags/min
(The speed depends on products and packaging material )
25-45bags/min (For zipper bag)
Package Accuracy Error≤±1%
Total Power 4 KW (220V-450V, 3PH, 50HZ/60HZ
Demension 2300×1500×1600
Weight 1700 KGS
Main Standard Accessories



1. Bag feeding system 2. PLC control system 3. Bag opening device 4. Filling system
5. Cleaning system 6. Hot
sealing control system 7. Output system

Packaging Style Display



Premade Zip Bag Automatic Weigh Fill Seal Packing Machine For Coffee Beans 0
